STANDARD CATALOGUE · Wire Grommets - Long Neck
LNG1006 Rubber Grommet
Wire Grommets - Long Neck: check this model's dimensions and profile against your assembly, then review the available ordering options.
DIMENSIONAL REFERENCE
Engineering drawing
Nominal dimensions. Unspecified profile details are schematic.
Download drawing SVG ↓CATALOGUE DIMENSIONS
LNG1006 specifications
| Dimension | Value (mm unless noted) |
|---|---|
| Minimum bore diameter | 5 |
| Front counterbore diameter | 14 |
| Rear counterbore diameter | 12 |
| Flange diameter | 27 |
| Groove diameter | 20 |
| Retention lip diameter | 21.6 |
| Lip taper end diameter | 19.2 |
| Body diameter | 15 |
| Overall length | 18.5 |
| Front flange thickness | 2 |
| Groove width | 2.5 |
| Front face to groove end | 4.5 |
| Front face to lip taper start | 5.5 |
| Front face to body shoulder | 8.5 |
| Front counterbore depth | 7 |
| Internal web thickness | 0.8 |
| Body length | 10 |
| Index mark (tangential × radial) | 1 × 2 |
| Groove end to body shoulder | 4 |
| Retention lip axial land | 1 |
Check the full part geometry against your panel and cable assembly. Linear dimensions are displayed to at most one decimal place in mm or three decimal places in inches, with trailing zeros omitted. Refer to the drawing for exact dimensions and tolerances. Only documented dimensions and explicit tolerances are listed. Angles are shown in degrees; unspecified transitions are schematic.
Unless otherwise specified, dimensional tolerances shall conform to ISO 3302-1, class M2. For tighter tolerances, please contact us. Explicit tolerances on the drawing take precedence. This default does not specify angular tolerances.
PROFILE & SELECTION
Check fit before ordering

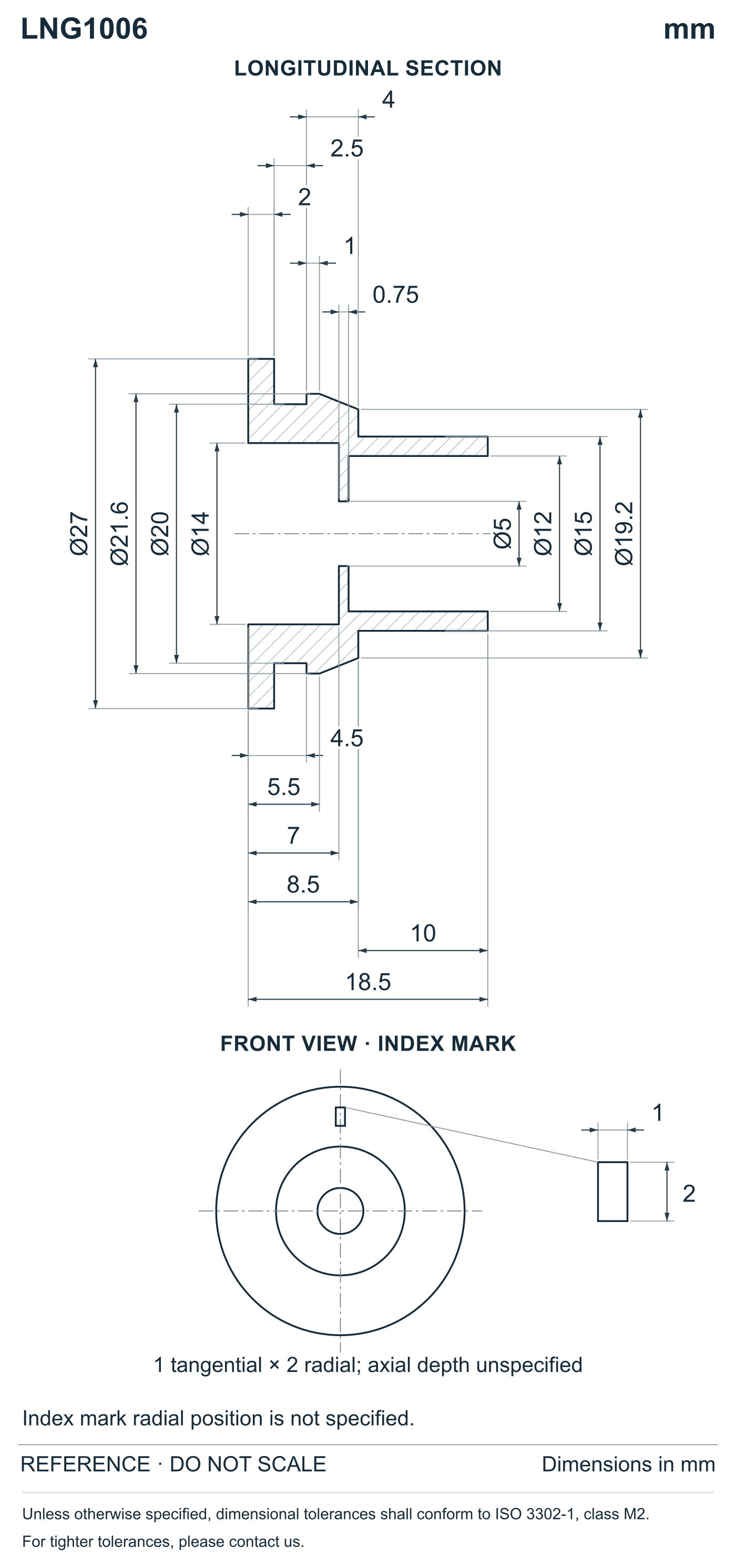

Wire Grommets - Long Neck profile reference.
Appearance varies with size and material.
- Compare the opening and groove dimensions separately with your assembly drawing.
- Review the overall dimensions, panel fit and installation space. Confirm any missing dimensions before ordering.
- Select the rubber compound for the actual temperature, fluid exposure and service conditions.
ORDERING REFERENCE
Available configurations
MOQ applies per material and color.
| Material | Color | Average unit price (USD) | Minimum order |
|---|---|---|---|
| NR (Natural Rubber) | Black | $0.213 | 1,900 pcs |
| NBR (Nitrile) | Black | $0.224 | 1,800 pcs |
| CR (Neoprene) | Black | $0.255 | 1,600 pcs |
| EPDM Rubber | Black | $0.25 | 1,600 pcs |
| VMQ (Silicone) | Black | $0.225 | 1,800 pcs |
| VMQ (Silicone) | White | $0.334 | 1,200 pcs |
| FKM (Fluorocarbon) | Black | $0.759 | 530 pcs |
| SBR (Styrene-Butadiene) | Black | $0.213 | 1,900 pcs |
Need to confirm a requirement?
We manufacture against the agreed part specification and acceptance criteria. Free samples may be available for eligible projects; contact us to confirm eligibility and sample arrangements.
