LNG1008 Rubber Grommet
Wire Grommets - Long Neck: check this model's dimensions and profile against your assembly, then review the available ordering options.
DIMENSIONAL REFERENCE

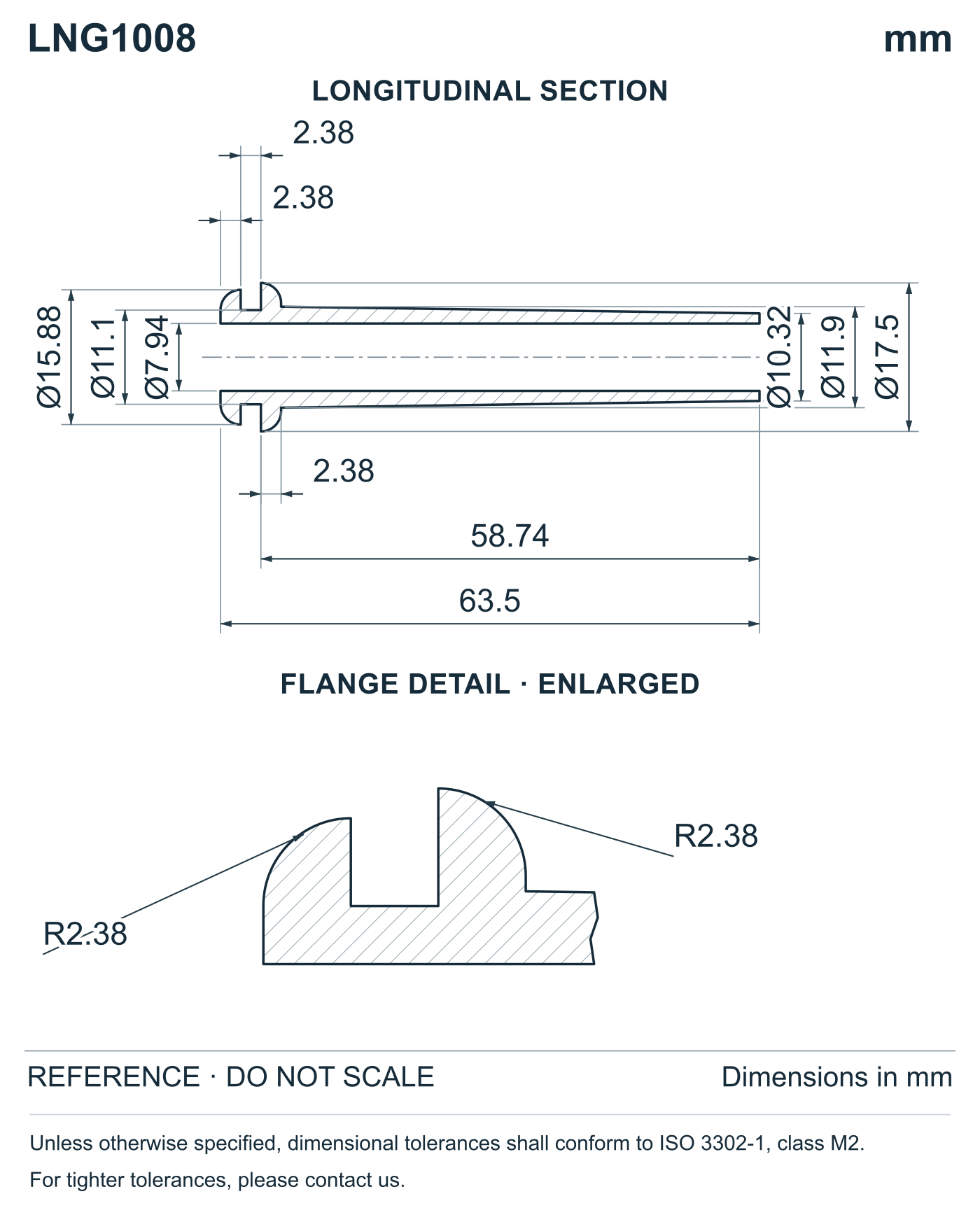

Engineering drawing
Nominal dimensions. Unspecified profile details are schematic.
Download drawing SVG ↓CATALOGUE DIMENSIONS
LNG1008 specifications
| Dimension | Value (mm unless noted) |
|---|---|
| Straight bore diameter | 7.9 |
| Tail outside diameter | 10.3 |
| Maximum flange diameter | 17.5 |
| Front flange diameter | 15.9 |
| Groove diameter | 11.1 |
| Neck root outside diameter | 11.9 |
| Overall length | 63.5 |
| Front flange thickness | 2.4 |
| Groove width | 2.4 |
| Rear flange axial span | 2.4 |
| Groove end to tail | 58.7 |
| Marked profile radii | R2.4 |
Check the full part geometry against your panel and cable assembly. Linear dimensions are displayed to at most one decimal place in mm or three decimal places in inches, with trailing zeros omitted. Refer to the drawing for exact dimensions and tolerances. Only documented dimensions and explicit tolerances are listed. Angles are shown in degrees; unspecified transitions are schematic.
Unless otherwise specified, dimensional tolerances shall conform to ISO 3302-1, class M2. For tighter tolerances, please contact us. Explicit tolerances on the drawing take precedence. This default does not specify angular tolerances.
PROFILE & SELECTION
Check fit before ordering
Wire Grommets - Long Neck profile reference.
Appearance varies with size and material.
- Compare the opening and groove dimensions separately with your assembly drawing.
- Review the overall dimensions, panel fit and installation space. Confirm any missing dimensions before ordering.
- Select the rubber compound for the actual temperature, fluid exposure and service conditions.
ORDERING REFERENCE
Available configurations
MOQ applies per material and color.
| Material | Color | Average unit price (USD) | Minimum order |
|---|---|---|---|
| NR (Natural Rubber) | Black | $0.466 | 860 pcs |
| NBR (Nitrile) | Black | $0.484 | 830 pcs |
| CR (Neoprene) | Black | $0.541 | 740 pcs |
| EPDM Rubber | Black | $0.521 | 770 pcs |
| VMQ (Silicone) | Black | $0.489 | 820 pcs |
| VMQ (Silicone) | White | $0.716 | 560 pcs |
| FKM (Fluorocarbon) | Black | $1.307 | 310 pcs |
| SBR (Styrene-Butadiene) | Black | $0.466 | 860 pcs |
Need to confirm a requirement?
We manufacture against the agreed part specification and acceptance criteria. Free samples may be available for eligible projects; contact us to confirm eligibility and sample arrangements.
