STANDARD CATALOGUE · Wire Grommets - Long Neck
LNG2004 Rubber Grommet
Wire Grommets - Long Neck: check this model's dimensions and profile against your assembly, then review the available ordering options.
DIMENSIONAL REFERENCE

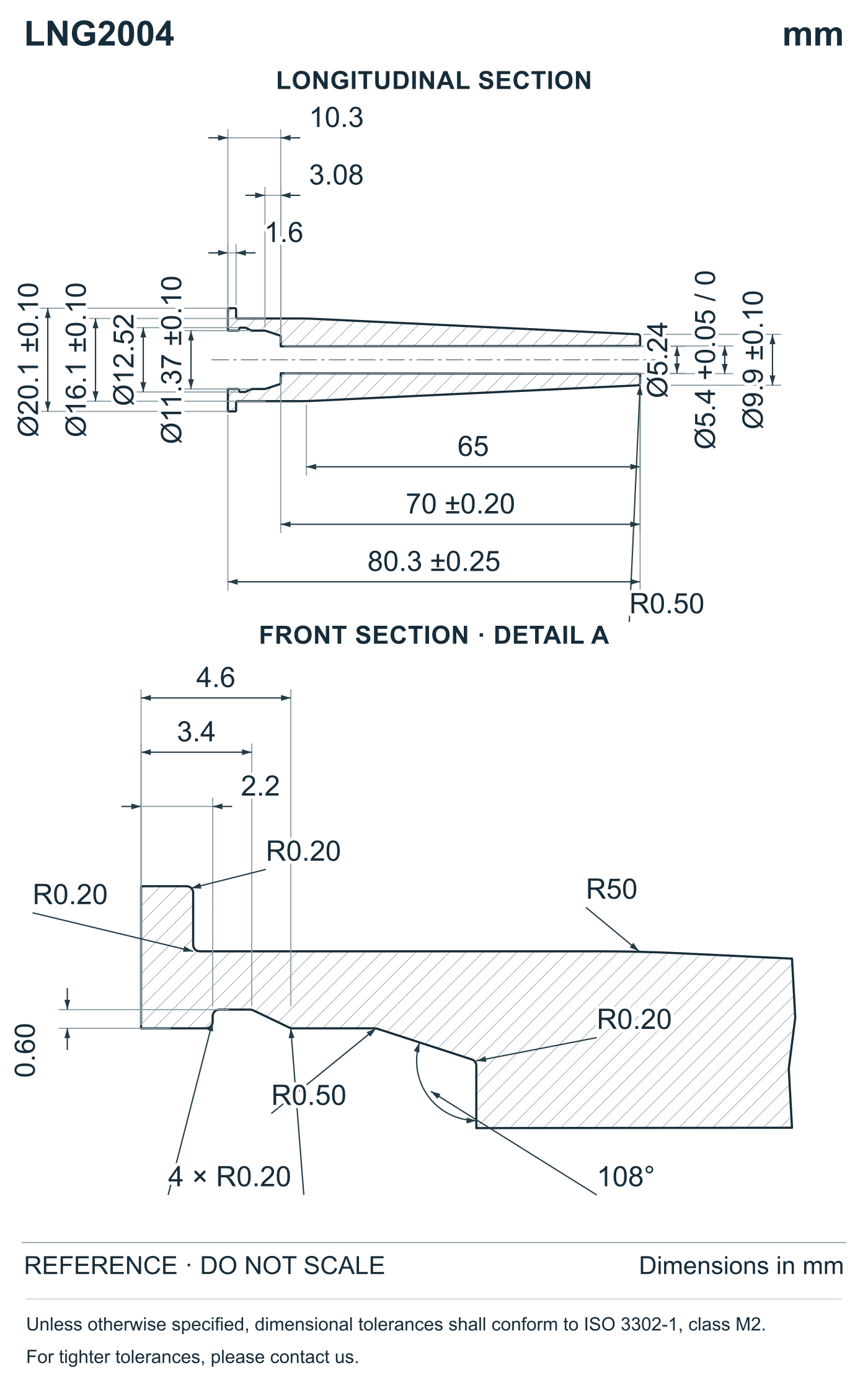

Engineering drawing
Nominal dimensions. Unspecified profile details are schematic.
Download drawing SVG ↓CATALOGUE DIMENSIONS
LNG2004 specifications
| Dimension | Value (mm unless noted) |
|---|---|
| Minimum bore diameter | 5.2 |
| Outlet bore diameter | 5.4 +0.1 / 0 |
| Inlet counterbore diameter | 11.4 ±0.1 |
| Flange diameter | 20.1 ±0.1 |
| Body root diameter | 16.1 ±0.1 |
| Tail outside diameter | 9.9 ±0.1 |
| Overall length | 80.3 ±0.3 |
| Flange thickness | 1.6 |
| Outer taper length | 65 |
| Bore transition end to tail | 70 ±0.2 |
| Front face to bore transition end | 10.3 |
| Bore transition length | 3.1 |
| Bore transition to shoulder angle | 108° |
| Inlet recess diameter | 12.5 |
| Detail A axial offsets | 2.2 / 3.4 / 4.6 |
| Detail A radial step | 0.6 |
| Detail A corner radii | 4 × R0.2 |
| Other marked radii | R0.2 / R0.5 / R50 |
Check the full part geometry against your panel and cable assembly. Linear dimensions are displayed to at most one decimal place in mm or three decimal places in inches, with trailing zeros omitted. Refer to the drawing for exact dimensions and tolerances. Only documented dimensions and explicit tolerances are listed. Angles are shown in degrees; unspecified transitions are schematic.
Unless otherwise specified, dimensional tolerances shall conform to ISO 3302-1, class M2. For tighter tolerances, please contact us. Explicit tolerances on the drawing take precedence. This default does not specify angular tolerances.
PROFILE & SELECTION
Check fit before ordering
Wire Grommets - Long Neck profile reference.
Appearance varies with size and material.
- Compare the bore, body and flange dimensions with your assembly drawing.
- Review the overall dimensions, panel fit and installation space. Confirm any missing dimensions before ordering.
- Select the rubber compound for the actual temperature, fluid exposure and service conditions.
ORDERING REFERENCE
Available configurations
MOQ applies per material and color.
| Material | Color | Average unit price (USD) | Minimum order |
|---|---|---|---|
| NR (Natural Rubber) | Black | $0.345 | 1,200 pcs |
| NBR (Nitrile) | Black | $0.378 | 1,100 pcs |
| CR (Neoprene) | Black | $0.503 | 800 pcs |
| EPDM Rubber | Black | $0.467 | 860 pcs |
| VMQ (Silicone) | Black | $0.404 | 990 pcs |
| VMQ (Silicone) | White | $0.59 | 680 pcs |
| FKM (Fluorocarbon) | Black | $2.035 | 200 pcs |
| SBR (Styrene-Butadiene) | Black | $0.345 | 1,200 pcs |
Need to confirm a requirement?
We manufacture against the agreed part specification and acceptance criteria. Free samples may be available for eligible projects; contact us to confirm eligibility and sample arrangements.
