STANDARD CATALOGUE · Waterproof Grommets
WPG1015 Rubber Grommet
Waterproof Grommets: check this model's dimensions and profile against your assembly, then review the available ordering options.
DIMENSIONAL REFERENCE

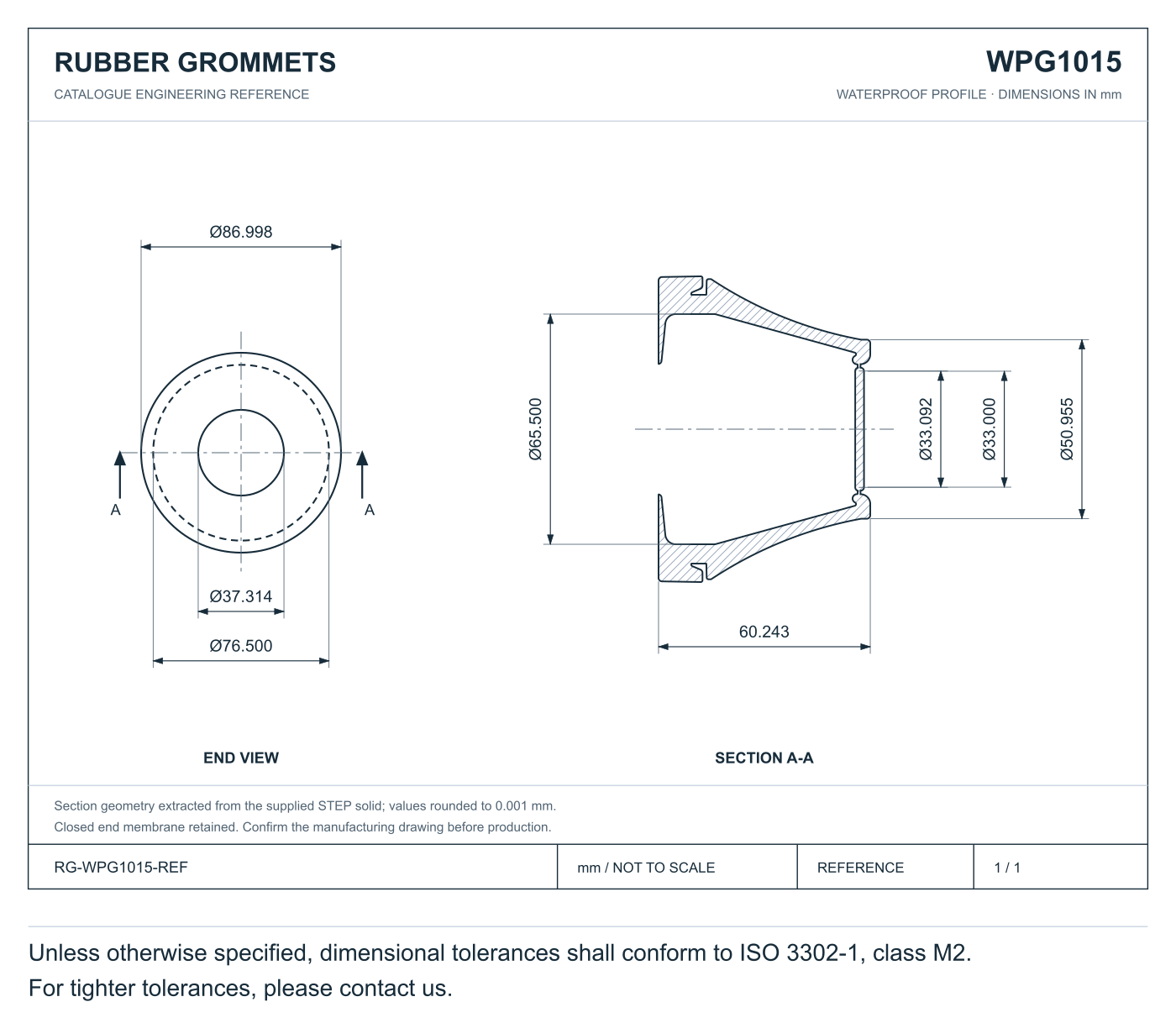

Engineering drawing
Nominal dimensions are marked directly on the drawing. Do not scale.
Download drawing SVG ↓CATALOGUE DIMENSIONS
WPG1015 specifications
| Dimension | Value (mm unless noted) |
|---|---|
| Cable size range | 37-43 |
| Outside diameter | 87 |
| Groove diameter | 76.5 |
| Groove width | 1-4 |
| Overall thickness | 60 |
Check the full part geometry against your panel and cable assembly. Linear dimensions are displayed to at most one decimal place in mm or three decimal places in inches, with trailing zeros omitted. Refer to the drawing for exact dimensions and tolerances. Catalogue ranges describe application fit. Refer to the source drawing for nominal part geometry.
Unless otherwise specified, dimensional tolerances shall conform to ISO 3302-1, class M2. For tighter tolerances, please contact us. Explicit tolerances on the drawing take precedence. This default does not specify angular tolerances.
PROFILE & SELECTION
Check fit before ordering
Waterproof Grommets profile reference.
Appearance varies with size and material.
- Cable size and panel ranges describe fit limits. They do not specify an exact bore or groove section.
- Review the overall dimensions, panel fit and installation space. Confirm any missing dimensions before ordering.
- Select the rubber compound for the actual temperature, fluid exposure and service conditions.
ORDERING REFERENCE
Available configurations
MOQ applies per material and color.
| Material | Color | Average unit price (USD) | Minimum order |
|---|---|---|---|
| NR (Natural Rubber) | Black | $2.375 | 170 pcs |
| NBR (Nitrile) | Black | $2.7 | 150 pcs |
| CR (Neoprene) | Black | $3.69 | 110 pcs |
| EPDM Rubber | Black | $3.372 | 120 pcs |
| VMQ (Silicone) | Black | $2.729 | 150 pcs |
| VMQ (Silicone) | White | $4.044 | 100 pcs |
| FKM (Fluorocarbon) | Black | $17.043 | 25 pcs |
| SBR (Styrene-Butadiene) | Black | $2.375 | 170 pcs |
Need to confirm a requirement?
We manufacture against the agreed part specification and acceptance criteria. Free samples may be available for eligible projects; contact us to confirm eligibility and sample arrangements.
